For today’s lesson you need a field for the robot to move. Prepare the field while your students are building the robots.
To access the full video please subscribe to FLLCasts.com
- #1032
- 20 Aug 2017

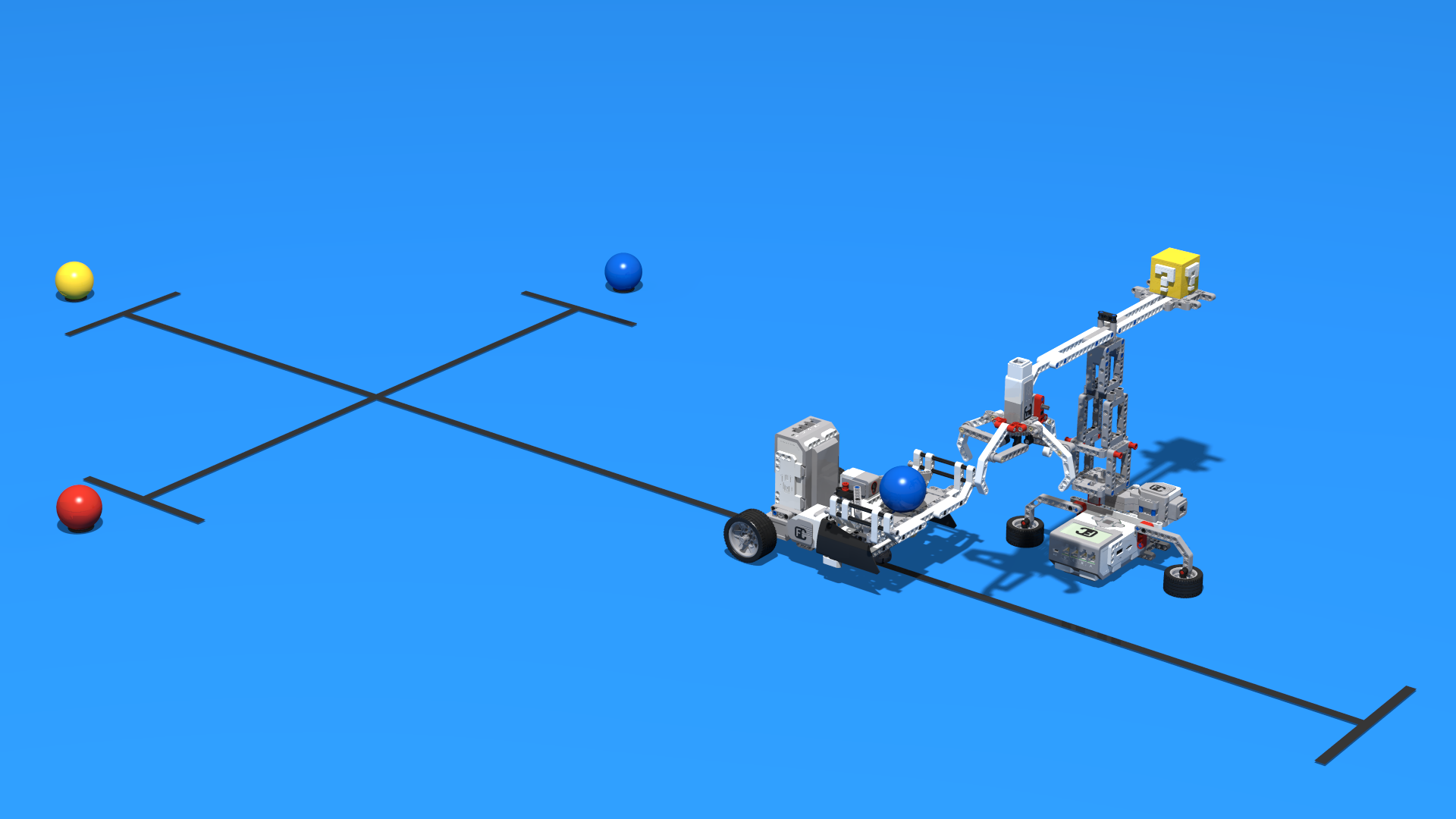

There is an example of the field locations shown on the picture above. Mark the beginning, from where the dump truck will start moving. Then, mark the shipyard, where you will locate the crane. Then, mark the dump points for the three resources – blue balls (natural gas), yellow balls (gold) and red balls (rubies). You can indicate the dump points by leaving a ball of the respective color on a rubber piece in order to secure it. Nevertheless, it would be better to mark the dump point under the ball, on the field, so that you can return the ball to its exact place if anyone pushes it away.
